Adventurer 2kVA Energy Board (Flat)
A complete pre-wired Adventurer energy board with 2000VA Victron power, supplied fully assembled and tested on a flat-mount board. Choose your lithium battery and solar — the inverter/charger, Cerbo GX monitoring, busbar and 12V distribution all come pre-installed. Custom wiring diagram and install guide included.
Your System Overview
314Ah Lithium
Battery
190W
Solar
30A DC-DC
Alternator Charging
Up to 1600W
Off-Grid 230V
Up to 3000W
Campsite 230V
12-Way Fuse Box
12V System
How Long Can You Stay Off-Grid?
Your off-grid times are based on the appliances you plan on using off-grid and the 314Ah battery, 190W solar, 30A DC-DC combination you've chosen. Select your appliances and see how long your selection will let you stay off-grid for.
Off-Grid Estimate
Select some appliances below to calculate off-grid times
Select the appliances you plan on using off-grid.
DC (12/24V)
AC (230V)
High Power AC (230V)
High-powered appliances will increase the cost of your system.
Needs > 1,600 W board
Adventurer 2kVA Energy Board (Flat)
£3,874.16
5-Year Complete System Warranty
Every component covered. We stand behind our systems because we build them to last.
Custom Wiring Diagram
Every order includes a professionally designed wiring diagram tailored to your exact system configuration and a comprehensive 50-page installation guide.
Unlimited Professional Support
We're not just here to sell you a system — we're here to ensure you've always got power on the road.
What's Included — Standard Configuration
Every part you need to install the system, based on the standard configuration. Use the options above to customise — the parts list updates with your selections.
View all 178.60000000000002 parts
- 1 × Victron Energy - MultiPlus-II 12/2000/80-32 230V VE.Bus
- 1 × Adventurer Flat Cable & Trunking Kit
- 1 × Board Labour 2KVA Flat
- 1 × Fogstar Drift ECO 12V 314Ah Lithium Leisure Battery + Bluetooth
- 1 × Victron Energy - Lynx Distributor
- 1 × Victron Energy Orion-Tr Smart 12/12-30A (360W) Non-Isolated DC-DC Charger
- 2 × Mains Consumer Unit (Deluxe)
- 1 × Adventurer Flat Black Hex Ply Board 1200 x 700mm
- 1 × Victron Energy Solar Panel 190W Mono
- 1 × Blue Sea 12-Way Fuse Box
- 1 × Blue Sea Terminal MRBF Fuse Block 1 Stud 300A (5191-BSS)
- 1 × Victron Energy SmartSolar MPPT 75/15
- 1 × Victron Energy Smart BatteryProtect 12/24V-65A
- 1 × Blue Sea Systems Switch Battery M-Series ON/OFF With Knob (6006-BSS)
- 1 × Solar PV Switch DC 32A
- 1 × 12V to 5V DC Converter 2.5A
- 4 × Solar Panel L-Brackets
- 1 × Waterproof Solar Double Gland Entry
- 1 × Blade fuse assorted (30 Pack)
- 1 × 40A Mega Fuse
- 100 × Black Self Tapping Screws 6 x 1/2" (ST16)
- 1 × 60A Mega Fuse
- 1 × Midi & Strip Fuse Holder 5mm
- 1 × 300A Mega Fuse
- 1 × 100A Mega Fuse
- 1 × Add-a-Circuit Blade Fuse Holder Mini (FU-35-20)
- 1 × Add-a-Circuit Blade Fuse Holder Standard (FU-36-20)
- 4 × Pan Pozi 5mm x 70mm Stainless Steel Screw (2222230)
- 1 × 60A Midi Fuse
- 0.3 × 9.5mm Heat Shrink Tubing Black - 10/16mm² Cable
- 2 × Battery Stud Cover 8-12mm Red (BTS2-R)
- 4 × A2 Stainless Steel M6 Hex Set Screws DIN 933 (M6x40)
- 2 × 16mm² Copper Tube Terminal/8mm² Eyelet
- 2 × Copper Tube Terminal 16mm²/5mm² Eyelet (R16-5)
- 0.3 × Adhesive Lined Heat Shrink 25.4mm Black (CHS31-25.4)
- 4 × A2 Stainless Steel M6 Nyloc Nut DIN 985
- 8 × A2 Stainless Steel M6 Washers
- 6 × Black Self Tapping Screws 10 x 1/2"
- 1 × 6mm² Copper Tube Terminal/8mm² Eyelet
- 4 × Decking Screws BZP 14 x 1.1/4 inch (STC13)
- 4 × Black Self Tapping Screws 6 x 3/4" (ST17)
- 2 × Black Self Tapping Screws 10 x 3/4" (ST23)
- 1 × Mini Blade Fuse 3A Purple (FU6-3)
- 1 × Standard Automotive Blade Fuse 3A Purple (FU2-3)
- 1 × Adventurer Flat Complete 2Kva Energy System Board 1220mm x 700mm (Pre Built Kit)
- 1 × Weekender/Adventurer Touch 50 Black Hex Ply Board 150 x 125mm
A Complete Board, Ready to Fit

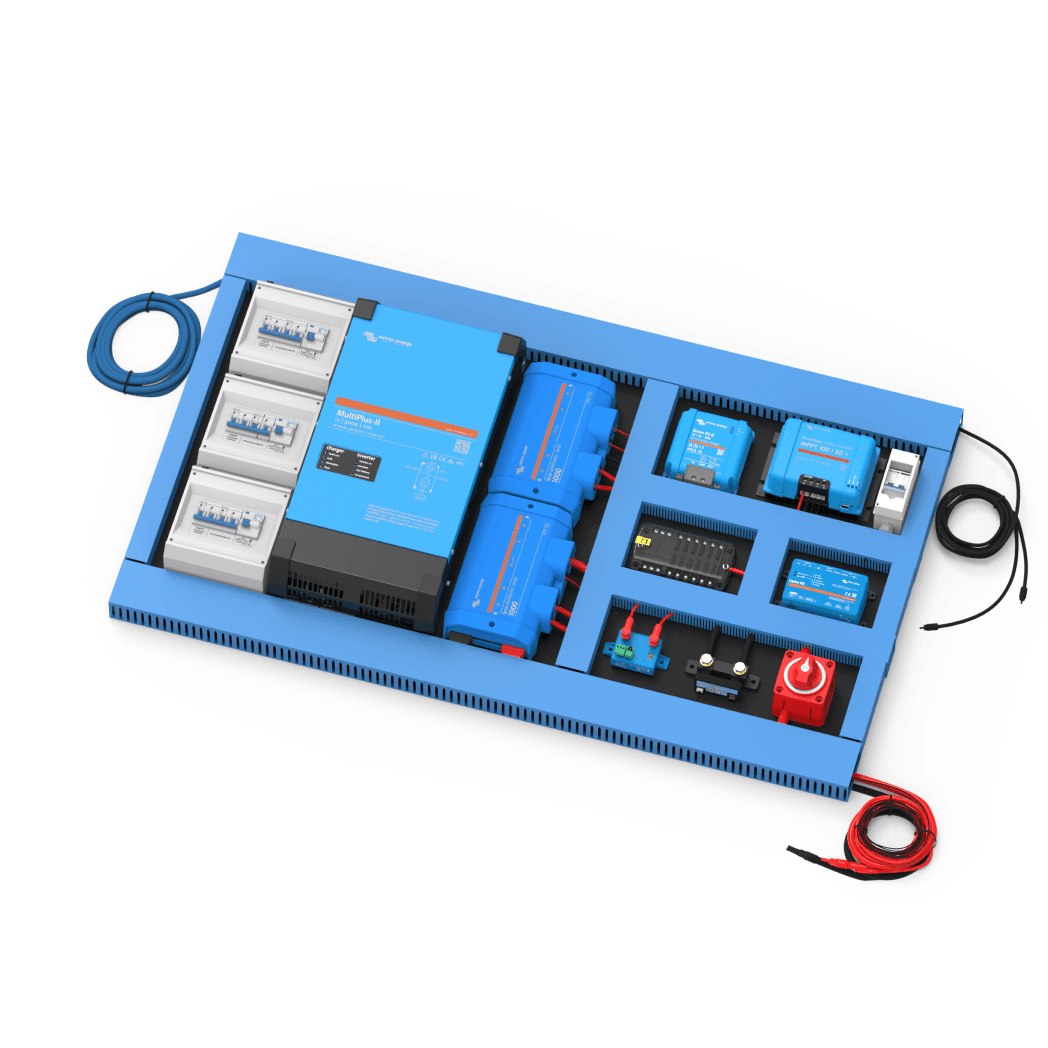

The Adventurer 2kVA Energy Board is a fully pre-wired Victron power system, assembled and tested on a single flat-mount board. Drop it into your van, connect your battery and a handful of labelled cables, and you have a professional-grade electrical system — no wiring from scratch.
2000VA of Victron Power
Built around a Victron 2000VA inverter/charger, the Adventurer board delivers strong 230V power off-grid and full campsite hook-up charging when you plug in.
Choose Your Battery and Solar
Pick the lithium battery capacity that suits how you travel, and add a solar array to keep it topped up. Everything else — inverter/charger, Cerbo GX monitoring, busbar and 12V distribution — is already on the board.
Included With Every Board
- Fully pre-wired and bench-tested board
- Victron Cerbo GX battery monitoring
- Custom wiring diagram and illustrated installation guide
Why Vunked?
We don't just sell components — we design complete campervan electrical systems. Every kit ships with a custom wiring diagram specific to the battery, solar, and inverter combination you choose, plus a detailed installation guide.
Not sure which options are right for your build? Book a free consultation before you order — we'll help you spec the system to match your van, your appliances, and how you travel.
We've helped hundreds of self-builders get their vans on the road, backed by over 170 five-star reviews from customers who've installed our systems themselves.
Built With the Best Brands
All core components are from Victron Energy — the industry standard for marine and off-grid power systems. Trusted by professionals worldwide.
That means Bluetooth monitoring and app control via VictronConnect, reliable MPPT solar charge controllers, a huge community for support, long-term parts availability, and a 5-year warranty on Victron products.
How It Works
Step 1
Choose your system
Pick your battery and solar options or design your system from scratch using our builder tool.
Step 2
Order your complete kit
Everything arrives in one delivery with your custom wiring diagram.
Step 3
Install with confidence
Follow your step-by-step guide — every connection is mapped out.
Step 4
Get ongoing support
We're here before, during, and after your build.
