What is a Victron Multiplus Inverter/Charger? The Complete Guide

The Victron Multiplus offers seamless power management in a compact, efficient design. Whether you plan to stay off-grid for weeks or rely on campsite hookups, the Multiplus is an essential kit for powering your home on wheels.

Your van's electrical system is the foundation of your vanlife experience. It determines your appliances and how long you can live off-grid. Building the perfect van power setup can feel overwhelming, especially when choosing the right equipment—like the Victron Multiplus with its many variations and kits.

This guide breaks down everything you need to know about the Victron Multiplus, its installation, and the right model for your vanlife adventures.

What is a Victron Multiplus Inverter/Charger?

The Victron Multiplus combines an inverter and a charger into one compact, efficient unit, making it a favourite among vanlifers who value reliability and simplicity. This powerhouse ensures seamless power management—whether connected to shore (hookup) power or off-grid.

At its core, the Multiplus converts DC power from your batteries into AC power for your 230V appliances. When connected to your mains, it recharges your battery bank and powers your van simultaneously.

The Multiplus has a built-in transfer switch, automatically transitioning between power sources without interruption. This versatility makes it perfect for everything from running your kettle in the morning to keeping you powered during an important Zoom meeting in the middle of nowhere.

The Multiplus provides us vanlifers with three key benefits: compactness, efficiency, and adaptability. Its small footprint saves valuable space, while its high efficiency means more power for longer—and, most importantly, more time on off-grid adventures.

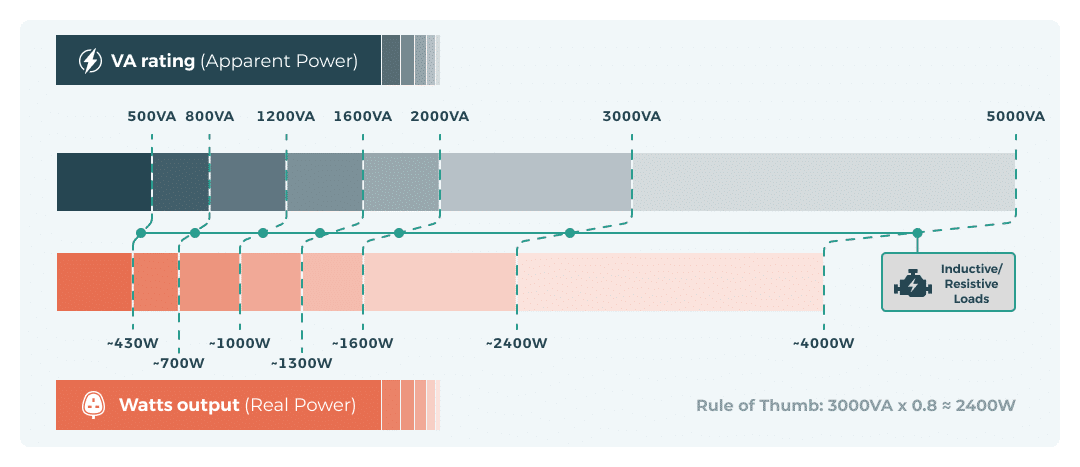

Understanding VA vs. Watts: What Do They Mean?

Now, let's get into the details because while the Victron Multiplus packs efficiency into every watt, there's a twist—it's VA-rated power, not watts.

This distinction matters, especially when planning your van's electrical setup. Let's break it down.

What is VA?

VA stands for "volt-amperes" and represents apparent power. It's the total power an inverter can supply under perfect conditions. In contrast, watts measure real power (or true power), the actual amount delivered to your devices. Due to inefficiencies and the nature of electrical loads, VA ratings are always higher than actual wattage.

For example, a 3000VA inverter might only provide 2400 watts of usable power. This gap arises because some energy is lost when voltage and current fall out of sync. That sync—or lack of it—leads to phase shift.

How temperature affects wattage

As the temperature rises, the wattage it can deliver decreases, significantly impacting your Multiplus's performance. This drop becomes noticeable in extreme conditions, such as temperatures around 60°C (140°F), where the usable wattage can fall to 50-60% of the VA rating.

For example:

• At 25°C (77°F), a 500VA unit delivers 430W.
• At 40°C (104°F), it drops to 400W.
• At 65°C (149°F), it plummets to 300W.

This decline is due to heat affecting the inverter's efficiency. To mitigate this, ensure proper ventilation for your Multiplus, especially in confined van spaces. Placing the unit away from direct sunlight or other heat sources can prevent performance dips.

Practical tip: Consider oversizing your inverter for hotter climates to account for potential wattage loss. This provides a buffer during peak temperatures, ensuring your system remains reliable.

While temperature influences long-term wattage, some appliances demand sudden bursts of power—introducing the concept of surge current.

Understanding surge current

Surge current is the brief current spike when you power on certain devices. Motors, compressors, or any equipment with a spinning component typically cause surges, which can be 2-3 times higher than the device's rated current.

The good news is the Victron Multiplus handles surge currents effortlessly. Its design allows it to manage peak currents for a few seconds without requiring you to oversize your inverter. For example:

• A 500VA unit can handle surges up to 900W.
• A 3000VA model supports peaks up to 6000W.

So, you don't need to size your inverter for these brief surges, like starting your fridge or running a blender, because the Multiplus can handle the extra sudden load.

Takeaway: When selecting an inverter, focus on your appliances' continuous power needs. Trust the Multiplus to manage surge currents for seamless power without over-engineering your system.

In addition to handling surge currents, the type of device you're powering can affect how efficiently your inverter performs, as seen with phase shifts.

The impact of phase shift

Not all devices draw power the same way. Resistive loads, like a toaster, use energy predictably, with voltage and current aligned. But inductive loads—think motors or compressors—create a phase shift. This mismatch reduces real power output.

Here's how this impacts van setups:

• Due to phase shift losses, a 1000VA inverter might only run a 750W motor.
• The solution? Oversize your inverter. Choosing a Multiplus with extra VA ensures your system handles demanding appliances without overload.

Practical tip: If your van features high-wattage devices like an induction hob, consider the VA and watt requirements when sizing your Multiplus.

Should you worry about VA?

For most vanlifers, understanding VA helps with one thing: picking the right inverter. The takeaway is simple. Always size your Multiplus with a buffer between the VA rating and your devices' combined wattage. This ensures your setup handles real-world conditions without a hitch.

The VA-watt difference is negligible if your setup leans toward essential appliances like LED lights and a laptop. But for high-demand setups, knowing this difference can save you from system overloads and frustration on the road.

A quick (rough) rule of thumb to get the Wattage - multiply the VA by 0.8. For example, 3000VA * 0.8 = 2400W.

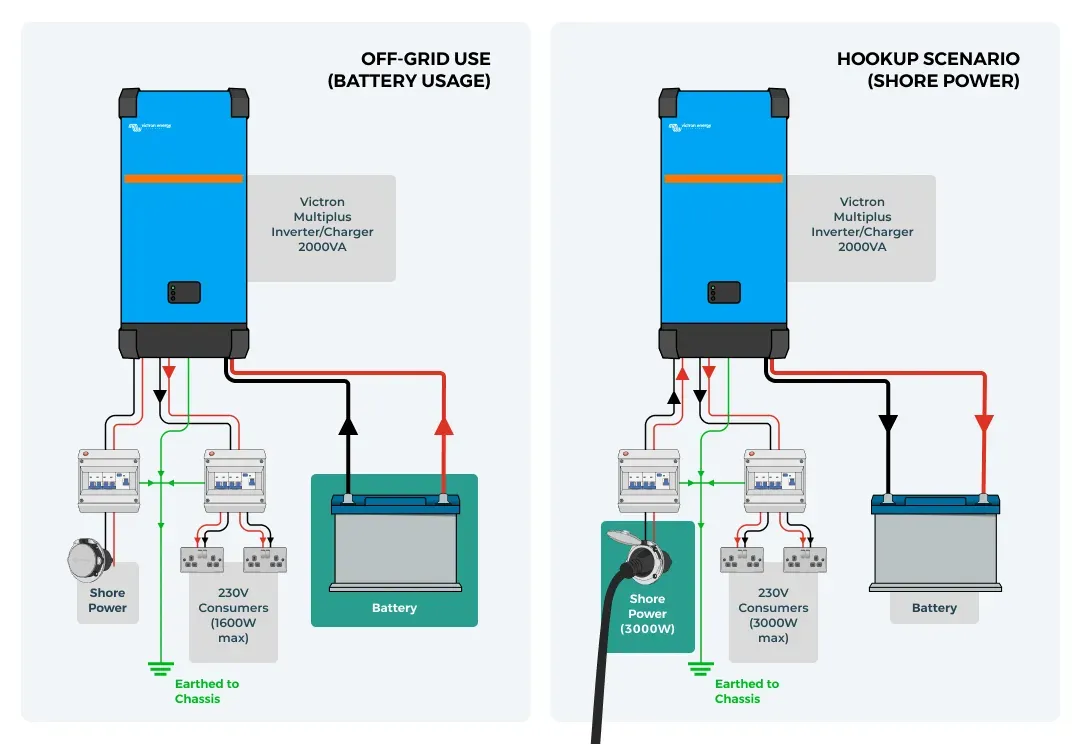

Off-Grid Power vs Hookup Power: How Multiplus Adapts

Let's look at how the Multiplus adapts to different power scenarios, ensuring your van runs smoothly, whether off-grid or connected to a hookup.

Off-grid wattage: VA ratings in action

The Multiplus relies entirely on your batteries when you're off-grid, and the VA rating determines its output. VA represents apparent power, but real-world conditions mean the actual watts available are slightly lower.

For example, a 3000VA Victron Multiplus delivers closer to 2400-2500W off-grid. This drop accounts for inefficiencies and phase shifts.

The takeaway? Always check the VA and wattage to ensure your Multiplus can handle the load. Vanlifers relying on smaller batteries or lower-rated inverters should plan carefully to avoid overloading the system.

Hookup power (3000W consistent output)

When connected to mains, the Multiplus shifts gears. It can consistently provide its full 3000W), bypassing battery limitations.

Hookup power allows you to run high-wattage appliances without straining your system. The Multiplus uses mains electricity directly while simultaneously charging your batteries—ensuring your van stays powered and your battery bank is replenished.

Practical energy-saving tips:

• High-power appliances on hookup: Plug into a campsite's hookup and enjoy full access to high-wattage devices like a kettle, microwave, or induction hob. The 3000W capacity ensures these energy-hungry appliances perform without issue.
• Low-power devices off-grid: When off-grid, stick to lower-wattage items like LED lights, laptop chargers, and fridges. These ensure your inverter runs efficiently without draining your batteries too quickly.

Planning your setup around these two scenarios keeps your van flexible and ready for any adventure.

Cost-saving tips when choosing a Victron Multiplus

For vanlifers on a budget, you don't always need to purchase the biggest Multiplus for your buck. A 500VA unit might be enough for basic 230V needs, like charging electronics or powering small appliances.

Here's the bonus: if you're a campsite or hookup power regular, even a 500VA Multiplus can still supply 3000W when hooked up. That's plenty for high-power appliances during a stay at a campsite.

Smaller units also save money on the ripple effects of downsizing:

• Smaller batteries: Less capacity needed for smaller inverters.
• Simpler solar setups: You require fewer campervan solar panels to recharge smaller batteries.
• Lighter wiring: Lower current means thinner, less expensive cables.

So, don't always go for the biggest and baddest Victron MultiPlus system; you can save money without sacrificing performance where it matters most.

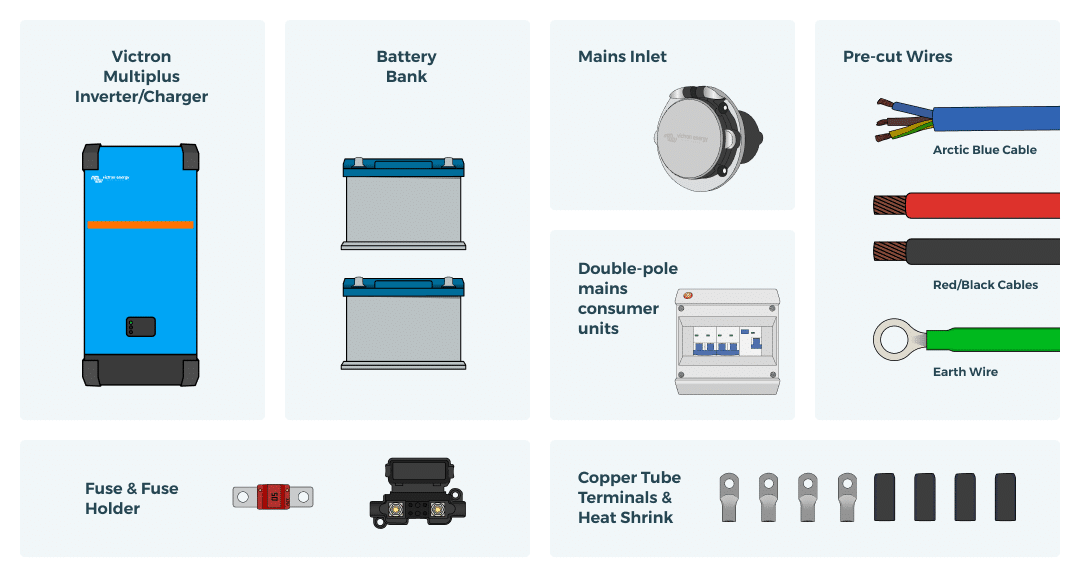

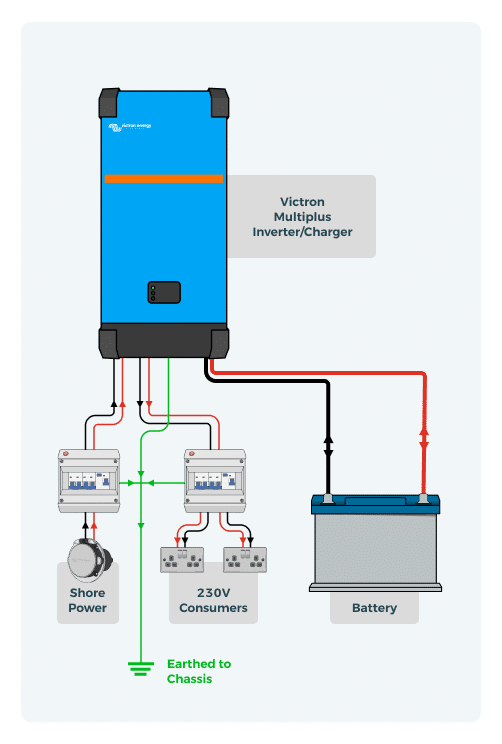

Core Components of a Victron Multiplus System

Let's explore the core components of a Victron Multiplus system, what's included and how it all comes together to power your van. Every Vunked Victron Multiplus system has everything you need for installation, including a handy guide and wiring diagram.

• Victron Multiplus Inverter/Charger: Each system features a Multiplus inverter/charger tailored to your power needs. The model determines the off-grid wattage, battery charging rate, and overall capabilities. For instance, the 500VA unit delivers 430W off-grid, while the 2000VA unit provides up to 1600W.
• White flush mains inlet: This is your connection point to hookup power. It ensures safe, reliable access to external electricity for charging your batteries and powering appliances.
• Double-pole mains consumer units: Each system includes two consumer units—one for the Multiplus 230V input and one for the output. These safeguard your system, manage power distribution, and maintain compliance with safety standards.
• Pre-cut wiring: Systems come with pre-measured wires for easy installation. This includes:
  • Arctic Blue Cable (10m) for mains connections.
  • Earth Wire (3m) for grounding.
  • Single-Core Red and Black Cables (2m each) with varying gauges based on system size (16mm² to 70mm²).
• Fuse and fuse holder: Each setup features a fuse holder and fuse rated for the system, ranging from 100A for smaller units to 300A for the largest. These protect against overcurrent and short circuits.
• Copper tube terminals and heat shrink: The kits include terminals and heat shrink for secure, durable cable connections. These vary in size to match the cable thickness of each system.

Choosing the Right Victron Multiplus Model for Your Van

Selecting the right Victron Multiplus model is about matching your van's power system to your lifestyle.

Here's a step-by-step guide to help you make an informed choice:

Step 1: Assess your power needs

Start by listing the appliances and devices you'll power:

• Low-wattage essentials: LED lights, phone chargers, and laptops.
• High-wattage appliances: Induction hobs, kettles, microwaves, or air conditioners.

Determine if you'll use these off-grid or primarily when connected to hookup power. Off-grid setups need an inverter with enough wattage to handle simultaneous appliance use. Hookup power users have mains power, so a smaller inverter might suffice.

Step 2: Check your battery capacity and type

The Multiplus relies on your battery bank. Ensure your campervan batteries can handle the inverter's demands:

• Smaller models (e.g., 500VA) pair well with modest battery setups like 100Ah lead-acid or lithium.
• Larger models (e.g., 2000VA or 3000VA) require higher-capacity batteries (e.g., 300Ah or more) to support larger loads without rapid depletion.

Lithium batteries are ideal for higher loads because of their efficient discharge rates.

Step 3: Ensure a sufficient battery discharge rate

For a 3000W inverter, your battery must deliver a high discharge rate. Without this, even a large-capacity battery won't meet your inverter's demand.

You can achieve the necessary discharge rate in one of two ways:

1. Choose a high-discharge battery: Models like the Fogstar Drift PRO 12V 230Ah feature a 300A discharge rate, making them ideal for high-demand setups.
2. Wire two batteries in parallel: Most lithium batteries, like the standard Fogstar Drift 12V 230Ah, have a discharge rate of 150A. By wiring two in parallel, you double the capacity and achieve a 300A discharge rate to match the inverter's requirements.

Practical tip: Batteries like the Fogstar Drift PRO offer robust features such as built-in heating for cold climates and Bluetooth connectivity for easy monitoring.

Step 4: Evaluate your solar panel setup

Consider how your campervan solar panels contribute to recharging your batteries:

• Minimal solar: A smaller Multiplus like the 500VA or 800VA can work if your battery charging relies on hookup power.
• Robust solar: If your system features multiple panels, larger inverters like the 2000VA or 3000VA allow you to fully utilise your solar array by powering appliances directly or recharging large battery banks faster.

Step 5: Factor in weight and space

Size matters in a van build. Compare:

• Compact models: Lightweight and space-saving, ideal for tight setups.
• Standard models: Larger and heavier but better for high-demand systems with room for installation.

For example, a 500VA compact model (weighs 4.4kg) saves significant space compared to a 3000VA standard version (weighs 18kg), which may need reinforced mounting and more ventilation.

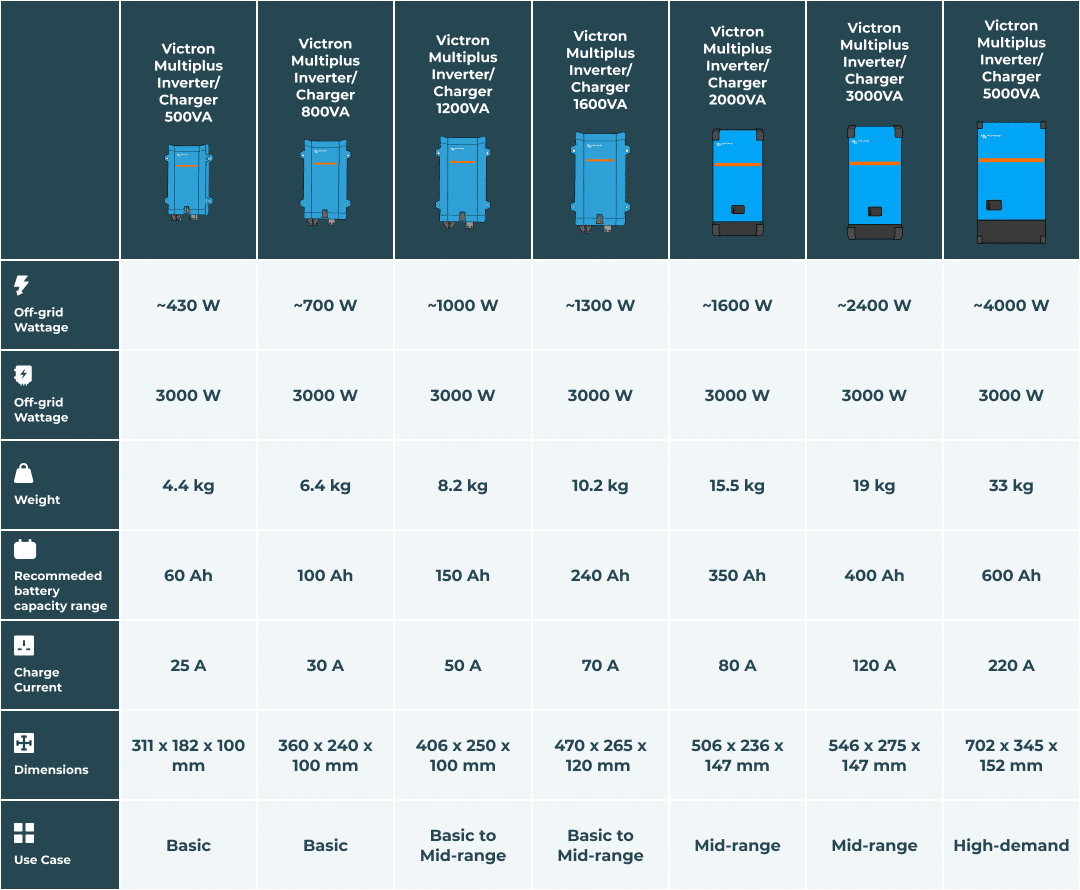

Step 6: Compare popular Victron Multiplus models

Here's a quick breakdown of standard Victron Multiplus options:

• 500VA: Powers up to 430W off-grid. Best for small setups running basics like lights and laptops. Saves space and works well with 100Ah batteries.
• 800VA: Supports up to 700W off-grid. A versatile mid-range option for modest van builds.
• 1200VA: Handles up to 1000W off-grid. Ideal for medium setups with appliances like fridges or a coffee maker.
• 2000VA: Delivers 1600W off-grid. Suitable for vans with larger appliances like an induction hob.
• 3000VA: Provides up to 2400W off-grid. The go-to for high-demand users with robust solar and battery setups. Will need a high discharge rate lithium battery or two normal lithium batteries wired in parallel.

If you're still feeling lost and overwhelmed, don't worry! We've designed a helpful tool to simplify your van electrics. It even creates a parts list to purchase—delivered anywhere in the UK within days.
